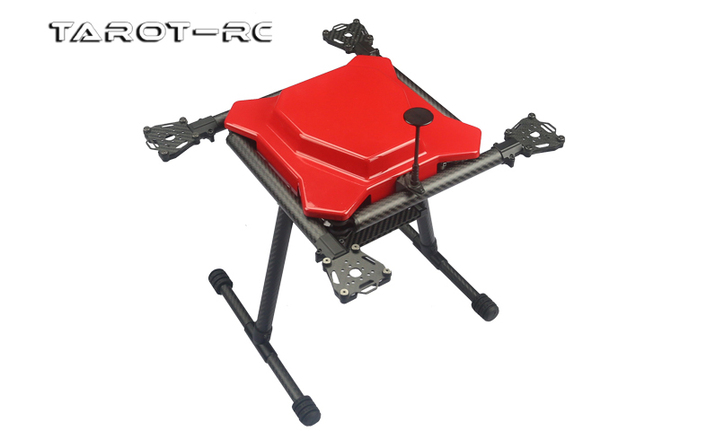

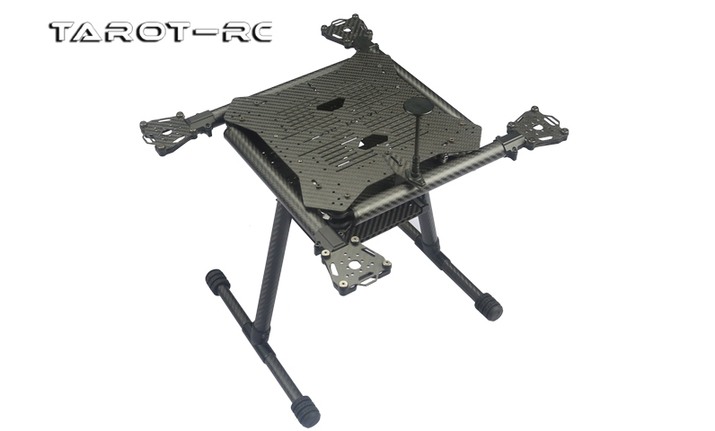

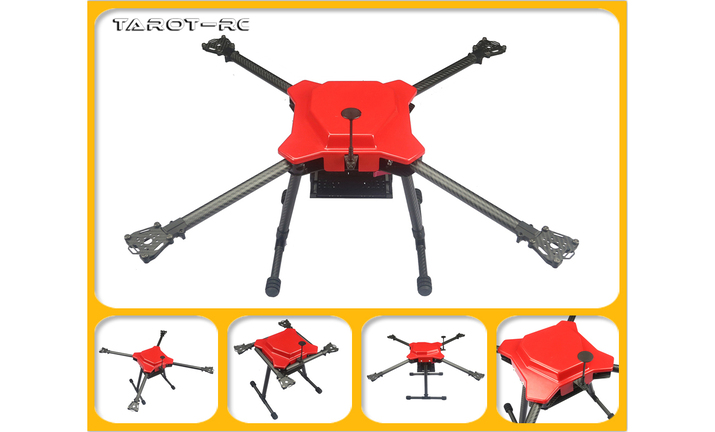

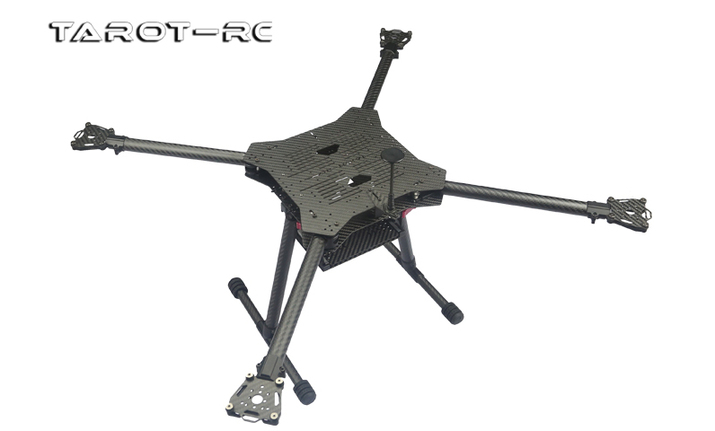

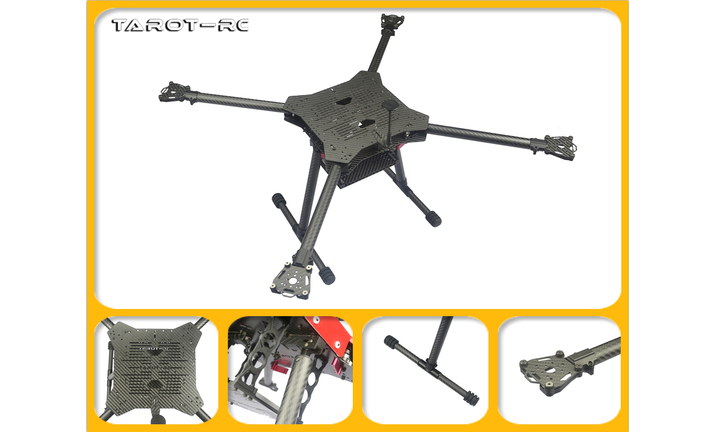

·Tarot's new folding Quad-axis frame
·A change in the usual umbrella-type folding structure using a new horizontal folding self-locking design

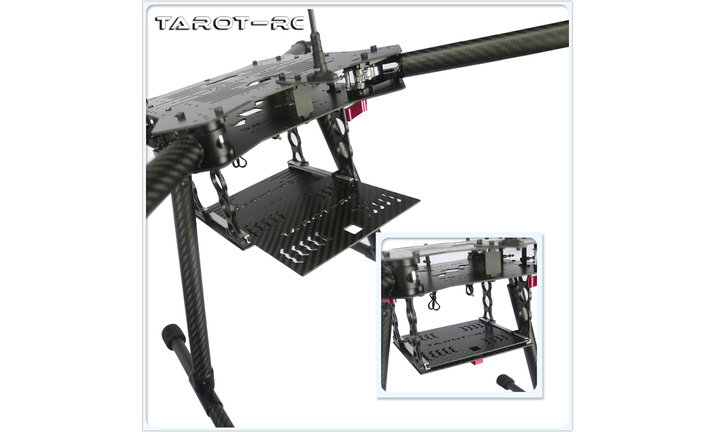

·Greatly improve the convenience of installation and transportation, using a large shelf design, easy to install a variety of electronic equipment

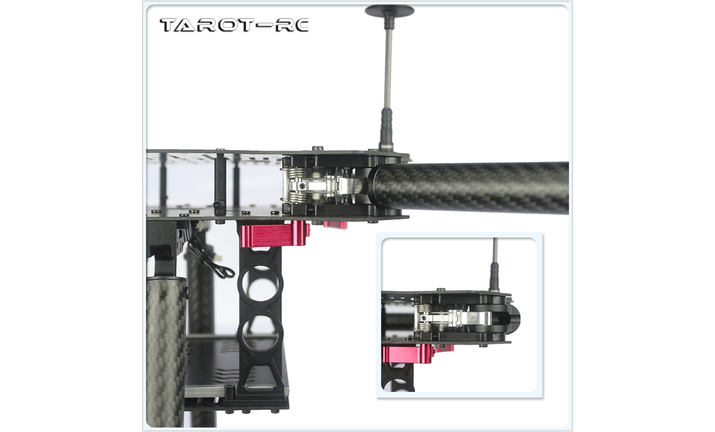

·Fast horizontal folding arm, easy to carry the whole frame
·Pull-out battery compartment design, quick installation of batteries
·Shock-absorbing motor mount to reduce the impact of motor vibration on the central flight control
·Split metal three-way motorized stand, solid bearing rack to the ground stability
·With the optimized configuration can make the hover time up to 50 minutes
Motor:6S 4114 320KV
ESC:Tarot ESC/hobbywing XRotor-Pro-40A TL2939
Props:Martin paddle 17 inch 1755/Tarot TL2948
Battery:22.2V 15000mAh
Takeoff weight:3.4KG
Hovering time:40Min
Net weight:1.70KG

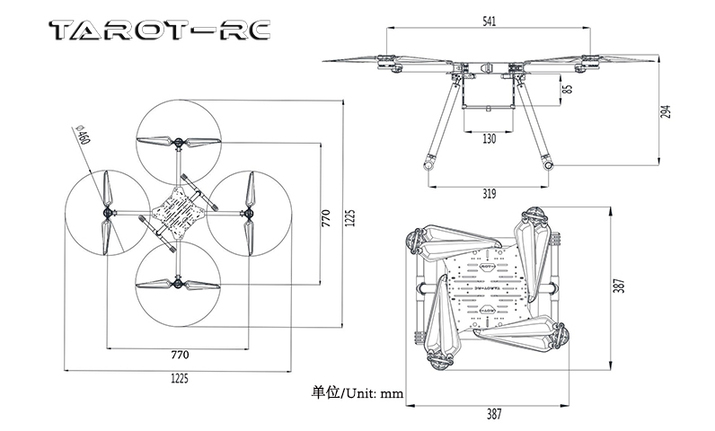

Symmetrical motor axis distance:770mm
Center plate diameter:190mm
Clearance height of landing gear:256mm
Motor installation hole spacing:Diagonal 16mm；Diagonal 19m；Symmetric four sides Φ25；Equilateral triangle Φ32
TL4Q770 frame set×1
