Tarot Multi-rotor Frame/Quadrotor/All Aluminum Body/ With special battery M860A

  • category:Multi-copter Frame
  • Selling price:11300 RMB
  • Upload time:2024-05-14 10:23:31
Number of views17

Standard configuration

Aircraft parameters

  • Empty aircraft weight
    3.3KG
  • Empty aircraft weight
    3.3KG
  • Battery weight
    3KG
  • Takeoff weight
    6.3KG
  • Maximum wind resistance
    Level 6 wind
  • Flight distance
    4000m
  • flight altitude
    3000m
  • Airplane mode
    Self-stabilizing altitude setting stay-behind one-key return etc.
  • Test environments
    Sunny. 35 ℃ Wind force level 2 Drone endurance length is related to the test environment and battery capacity
  • Unloaded flight
    13A ≈ 65 minutes
  • Loaded flight
    (1kg/16.5A) ≈ 50 minutes (2kg/19.5A) ≈ 40 minutes (3kg/23.5A) ≈ 35 minutes

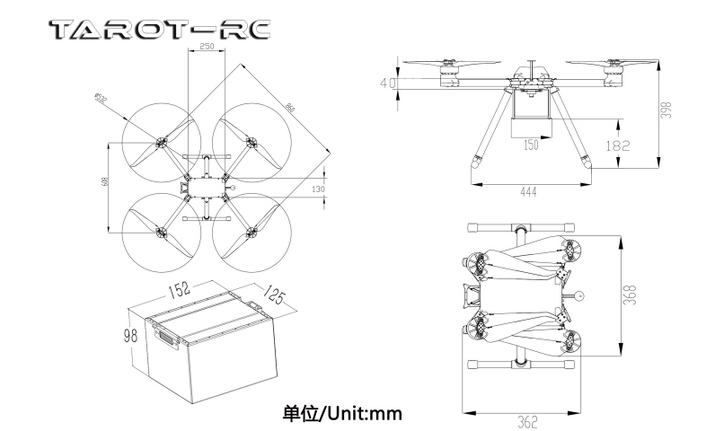

  • Wheelbase
    860mm
  • Deployed wing length
    1391mm
  • Folding size
    368*362mm
  • Center compartment size
    250*130*40mm
  • Frame height
    398mm
  • Battery Size
    152*125*90mm

Product description

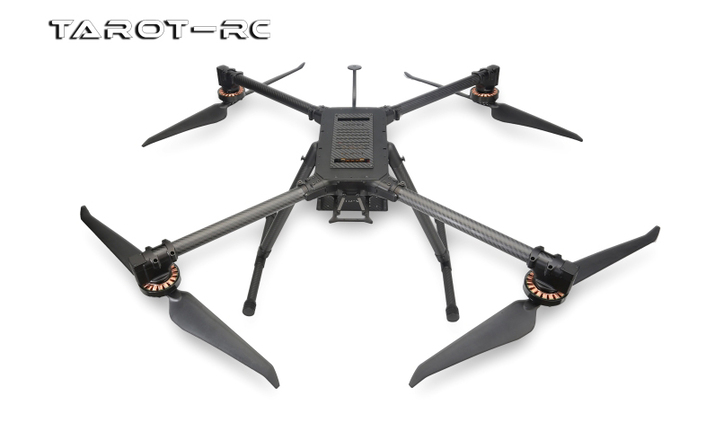

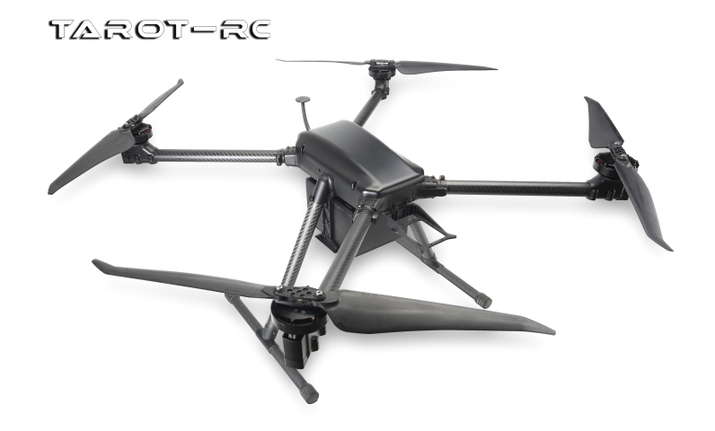

·Tarot's new Quadcopter is a multi-axis kit designed for professional aerial photography users;

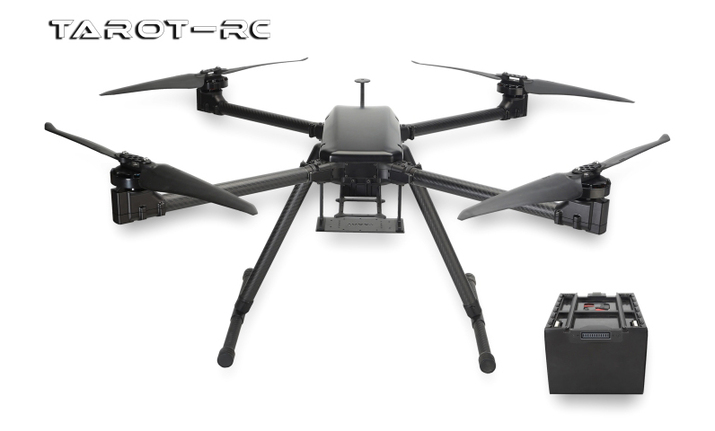

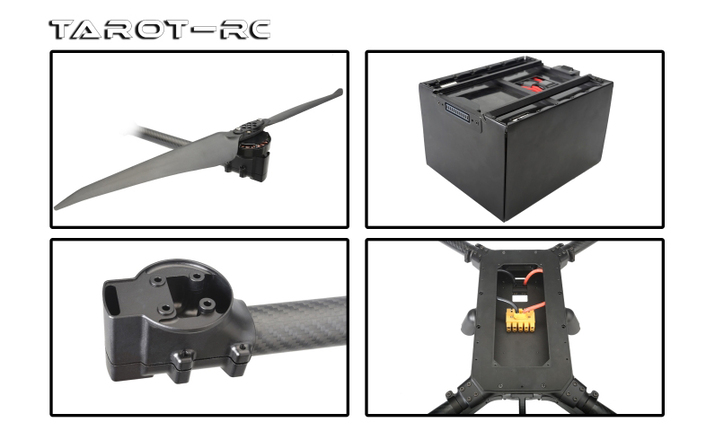

·Kit includes frame,motor,ESC,props,quick release battery(Overseas version only has a battery compartment because the battery can't be shipped);
·All-aluminum alloy one-piece center compartment;

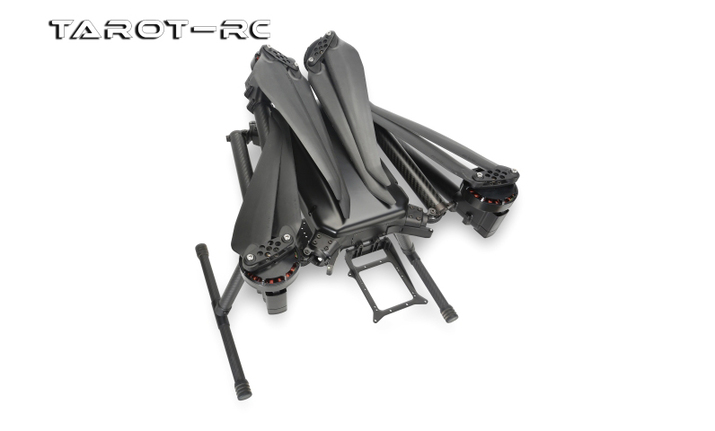

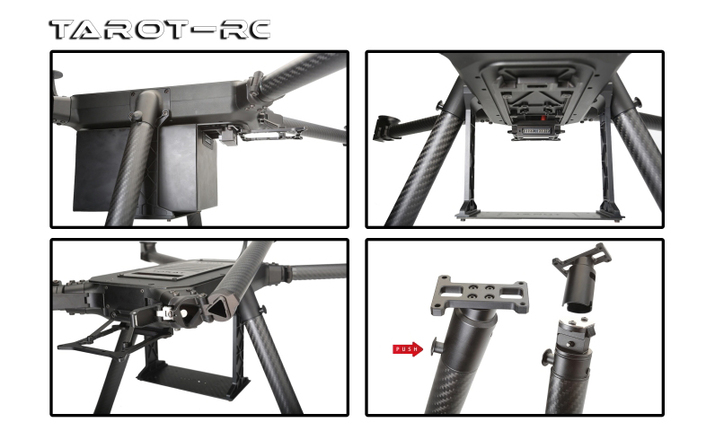

·Novel quick-detachable T-shaped landing gear, as well as the arm folded back and forth design;
·Overall lightweight, easy to carry and other features;
·Empty takeoff weight about 6.3KG, maximum extra load 3KG;
·Easy to carry DSLR and other aerial photography equipment, with 65 minutes of unloaded long endurance stay time;
·Configuration can be upgraded to increase endurance.

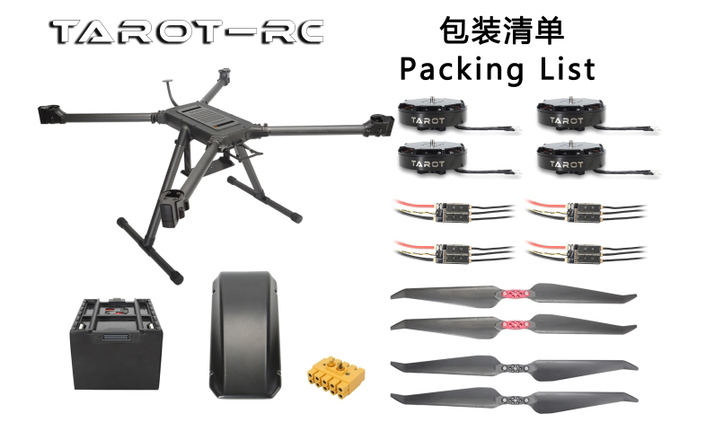

Packing list

M860 Frame ×1
Tarot 6009/130KV Motor ×4
FLYCOLOR 12S/60A ESC ×4
Tarot 2110 Folding Propeller ×4
Quick Release Battery Set ×1

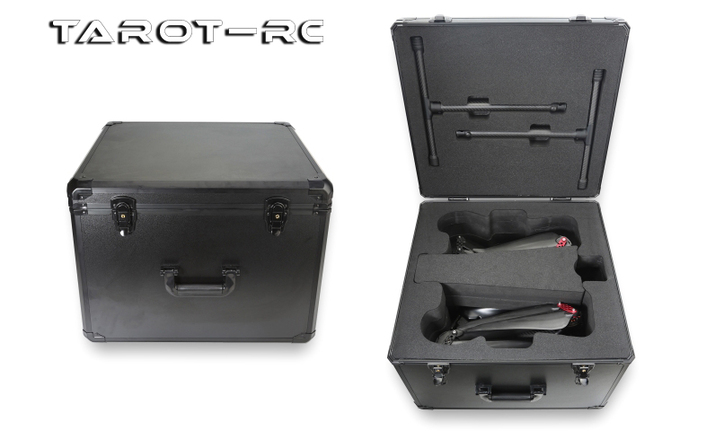

Portable aluminum box(49*37*46CM)  ×1
