Tarot Multirotor/Quadcopter/Long Endurance/H-Shape/All Aluminum Fuselage/With special Battery H720A-1kg load rack-Wenzhou Feiyue Technology Co., Ltd.

Tarot Multirotor/Quadcopter/Long Endurance/H-Shape/All Aluminum Fuselage/With special Battery H720A

category：Multi-copter Frame
Selling price：11500 RMB
Upload time：2024-05-14 10:05:55

Number of views26

Frame Parameters

Parameter
Parameter values
Parameter
Parameter values
Empty aircraft weight
2.61KG
Battery weigh
2.28KG（1.14KG*2）
Take-off weight
4.89KG
Max. wind resistance
Force 6 wind
Flight distance
4000m
flight altitude
3000m
Flight mode
Self-stabilizing altitude setting stay-behind one-key return etc.
Test environments
Sunny. 35 ℃ Wind force level 2
Drone endurance length is related to the test environment and battery capacity
Unloaded flight
20A≈75 min
Loaded flight
(1kg/27A)≈55 min
Wheelbase
724mm
Deployed wing length
1180mm
Arm length
550mm
Center compartment size
436*116*79mm
Frame height
383mm

Product description

·Tarot's New Quadcopter Long Endurance Kit;
·Kit includes frame,motor,ESC, props,quick release,special Triangular Battery;
·All-aluminum body,novel H shape;
·Portable detachable arm,foldable landing gear,overall lightweight,easy to carry and so on;
·Empty takeoff weight about 4.9KG;
·Easy to carry small gimbal,aerial photography,thrower and other equipment for a long time operation;
·Long endurance retention time of 75 minutes unloaded.

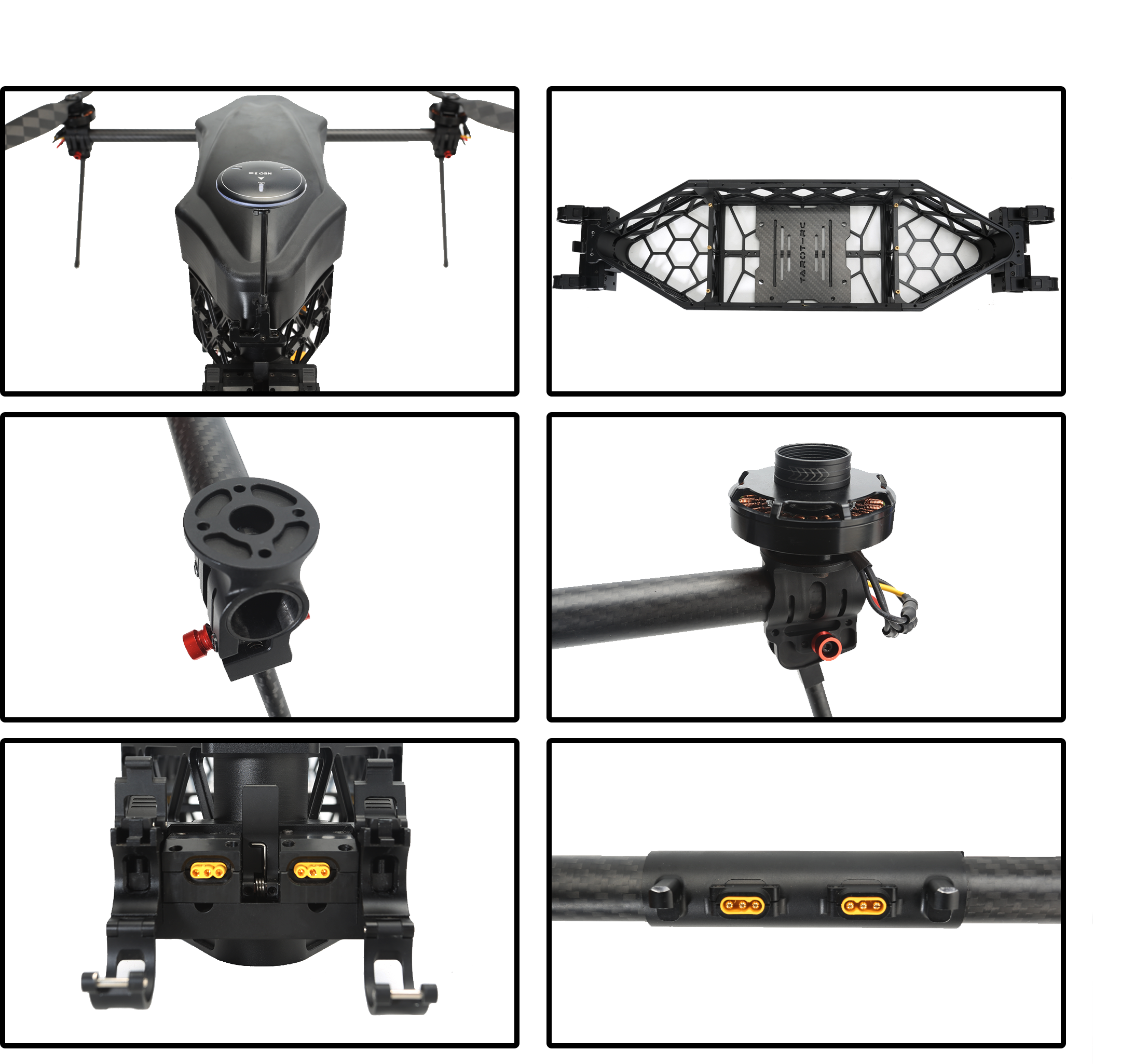

Product characteristics

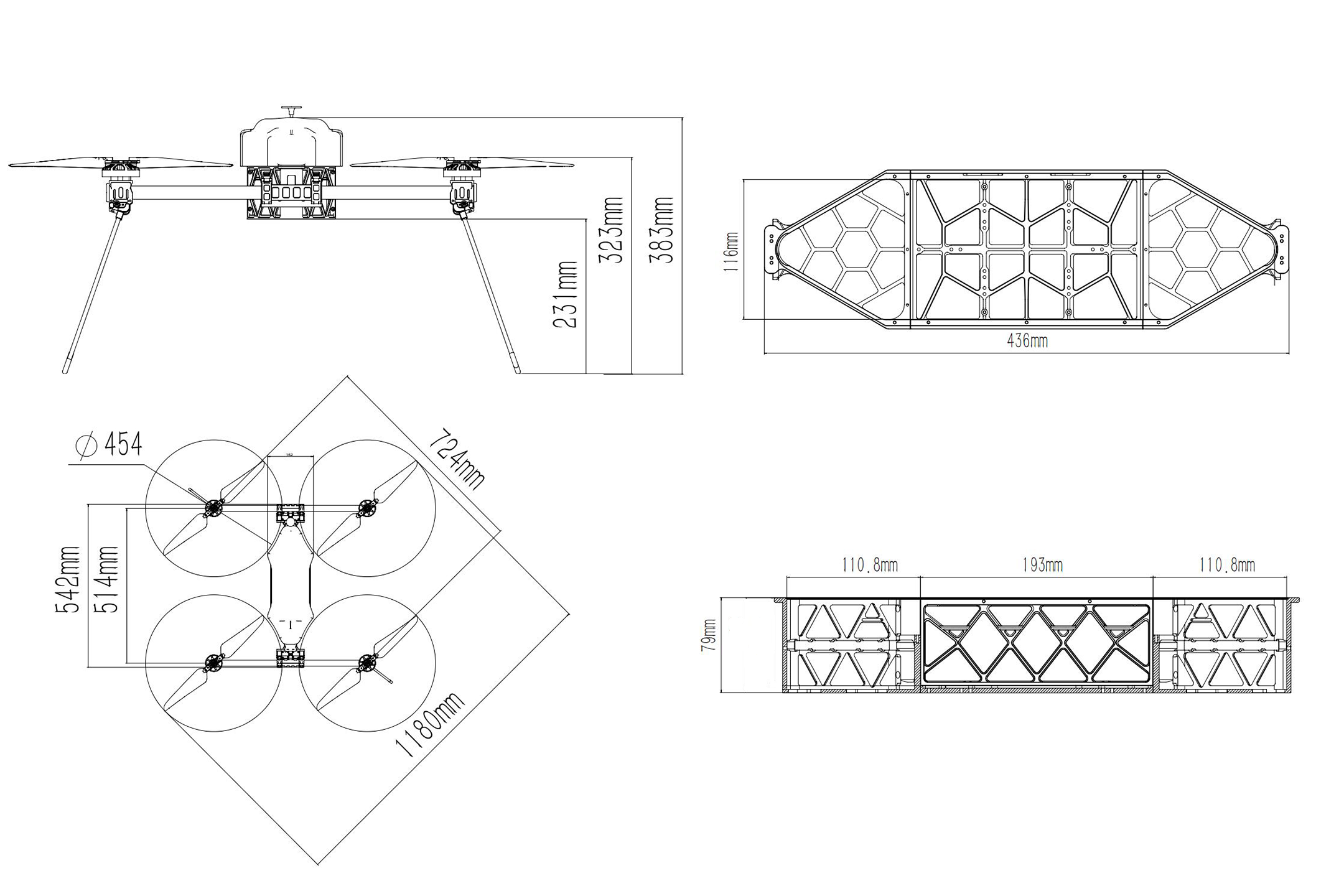

Product size

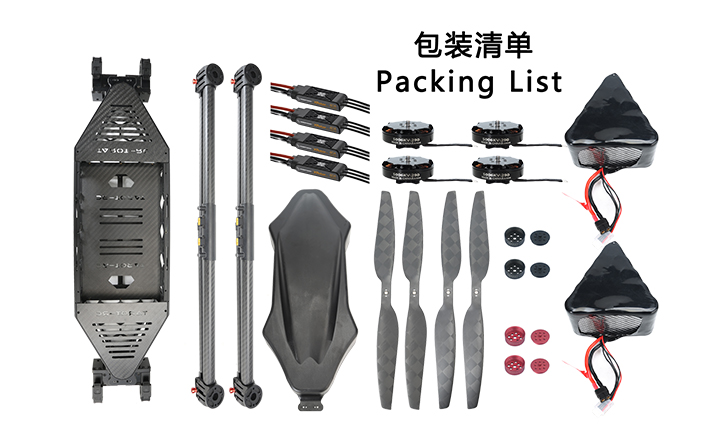

Packing list

H720 Frame ×1
Tarot 5006/290KV motor ×4
Hobbywing 6S/40A ESC ×4
Martin 1865 one-piece carbon fiber props ×4
Triangular Battery ×2
