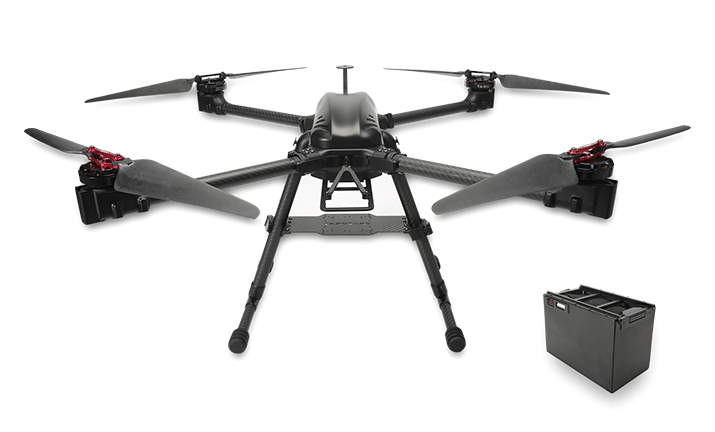

Tarot Multi-rotor Frame/Quadrotor/All Aluminum Body/ With special battery M690A

  • category:Multi rotor aircraft
  • Selling price:7900 RMB
  • Upload time:2024-04-18 09:47:23
Number of views24

Standard Configuration

Frame Parameters

  • Parameter
    Parameter values
  • Parameter
    Parameter values
  • Empty aircraft weight
    2.18KG
  • Battery weigh
    2.14kg
  • Take-off weight
    4.32kg
  • Max. wind resistance
    Force 6 wind
  • Flight distance
    4000m
  • Flight altitude
    3000m
  • Flight mode
    Self-stabilizing altitude setting stay-behind one-key return etc.
  • Test environments
    Sunny.25°C. Wind force 2
  • Drone endurance length is related to the test environment and battery capacity
  • Unloaded flight
    18A≈50min
  • Loaded flight
    (0.5kg/22A)≈40min (1kg/25A)≈35min
  • Wheelbase
    690mm
  • Deployed wing length
    893mm
  • Folding size
    290*326mm
  • Center compartment size
    200*100*38mm
  • Frame height
    338mm
  • Battery Size
    152*107*87mm

Product description

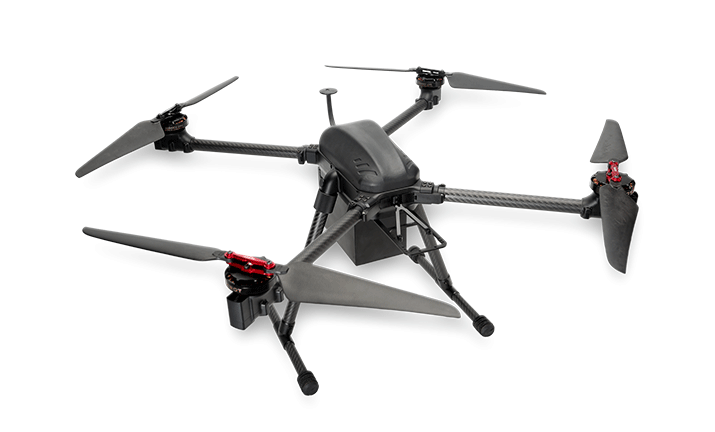

·Tarot's new Quadcopter is a multi-axis kit designed for professional aerial photography users;
·Kit includes frame,motor,ESC,props,quick release battery(Overseas version only has a battery compartment because the battery can't be shipped);

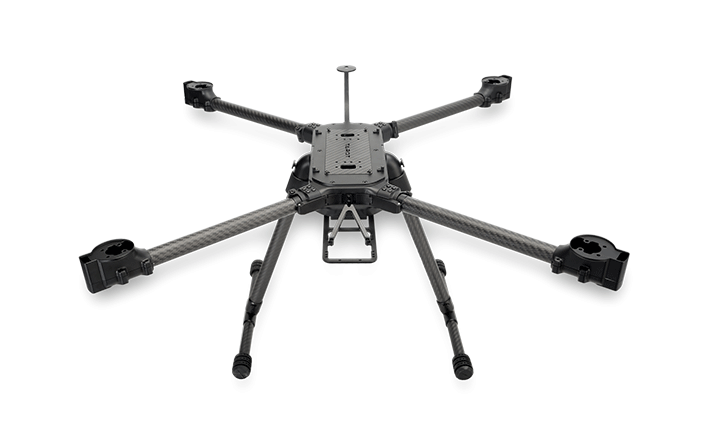

·All-aluminum alloy one-piece center compartment;

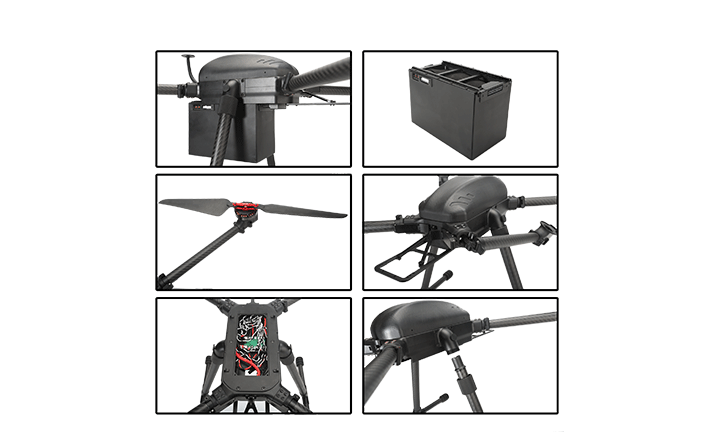

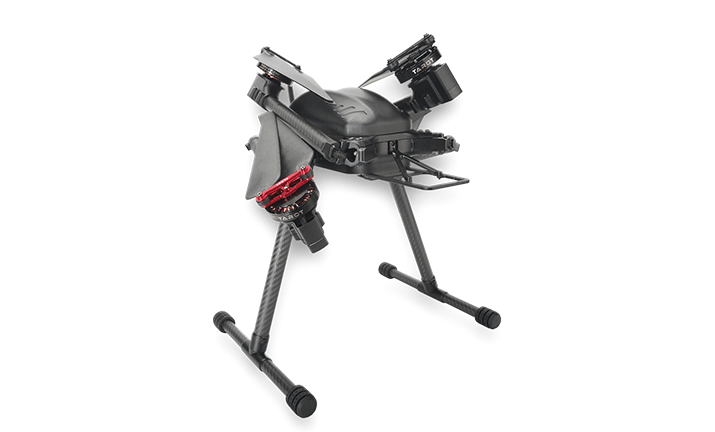

·Novel quick-detachable T-shaped landing gear, as well as the arm folded back and forth design;
·Overall lightweight, easy to carry and other features;
·Empty takeoff weight about 4.3KG, maximum extra load 1KG;

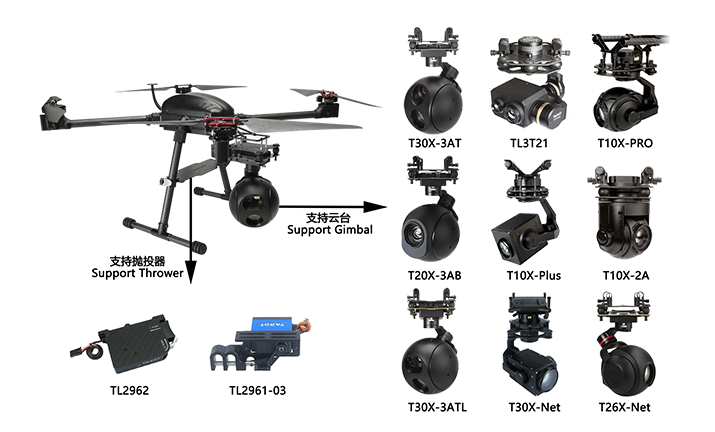

·Easy to carry DSLR and other aerial photography equipment, with 40 minutes of unloaded long endurance stay time;
·Configuration can be upgraded to increase endurance.

Caution:
The frame arm is constructed with an asymmetrical folding structure.

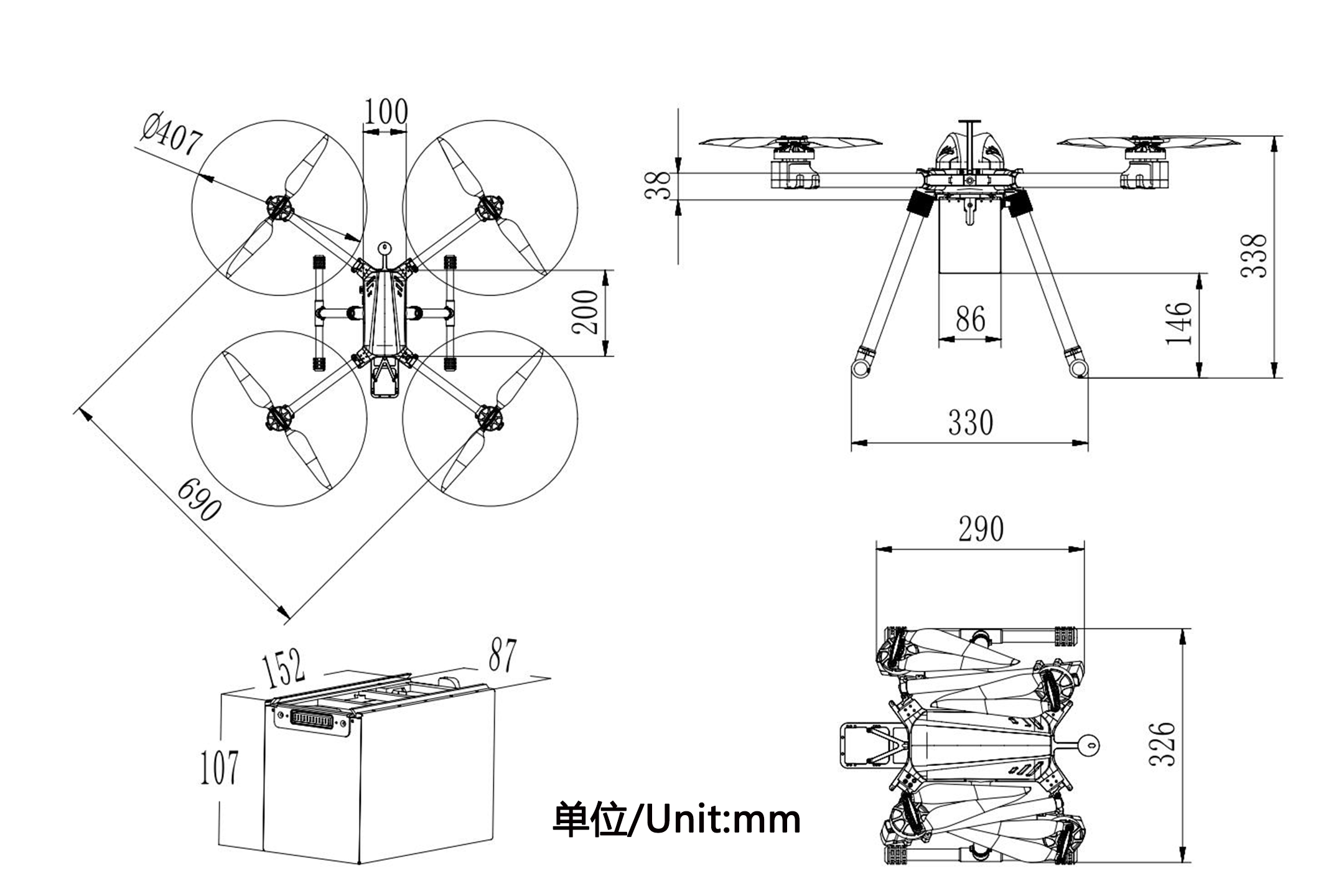

Product size

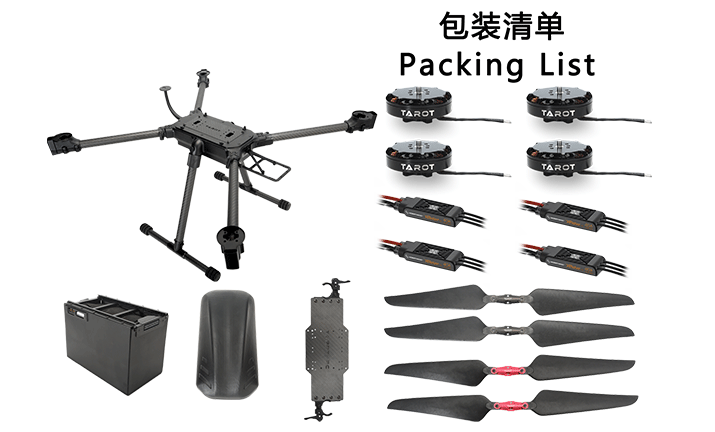

Packing list

M690 Frame ×1
Tarot 5006/290KV Motor ×4
Hobbywing Xrotor-Pro -40A  ESC ×4
Tarot 1865 Folding Propeller ×4
Quick Release Battery Set ×1

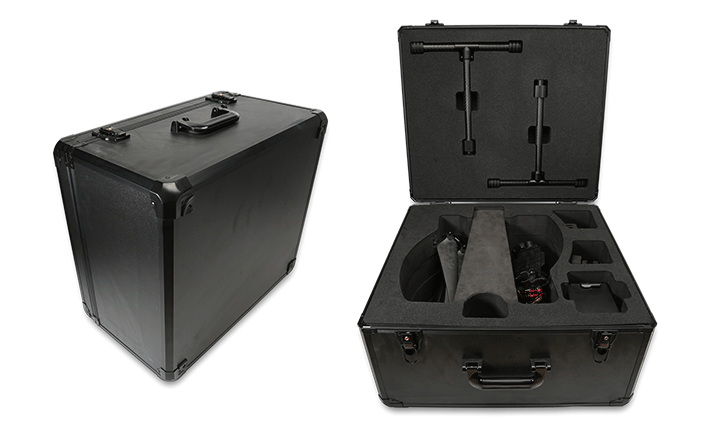

Portable aluminum box(49*36*47CM)  ×1
