Tarot Multi-Rotor Frame/Non-Folding Quadcopter 680/Metal Model TL680A-1kg load rack-Wenzhou Feiyue Technology Co., Ltd.

Tarot Multi-Rotor Frame/Non-Folding Quadcopter 680/Metal Model TL680A

category：Multi rotor aircraft
Selling price：1380 RMB
Upload time：2024-12-04 19:21:45

Number of views21

Frame Parameters

Parameter
Parameter values
Parameter
Parameter values
Empty aircraft weight
1.94kg
Battery weight
1.66kg(12000mAh)
Take-off weight
3.6kg
Max. wind resistance
Force 6 wind
Flight distance
4000m
Flight altitude
3000m
Flight mode
Self-stabilizing altitude setting stay-behind one-key return etc.
Test environments
Sunny.35°C. Wind force 2
Drone endurance length is related to the test environment and battery capacity
Unloaded flight
15.4A≈40min
Loaded flight
(0.5kg/19.4A)≈34min (1kg/22.9A)≈28min (1.5kg/26.6A)≈24min (2kg/30.1A)≈20min
Wheelbase
680mm
Deployed wing length
1145mm
Center plate size
170*170mm
Frame height
324mm

Product description

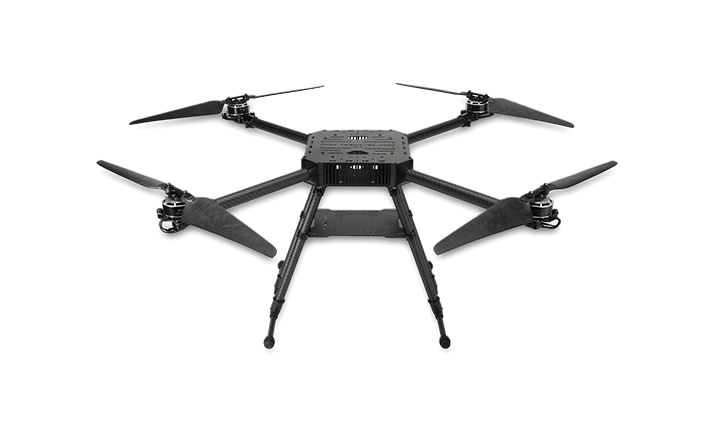

·Tarot's newest 680-wheelbase quadcopter, the Metal model;
·Adopting integrated non-folding structure design, the whole frame is reliable and sturdy;
·Suitable for surveillance, remote sensing, mapping, aerial reconnaissance, fire observation, life exploration, cable patrol, farm monitoring, and other applications that require high mobility and low equipment load.

Product characteristics

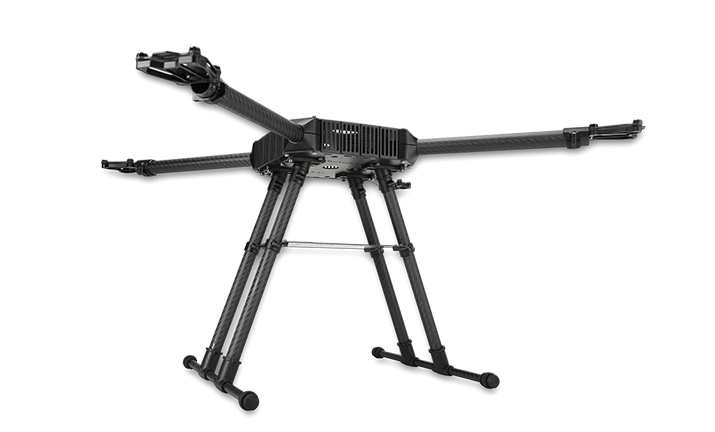

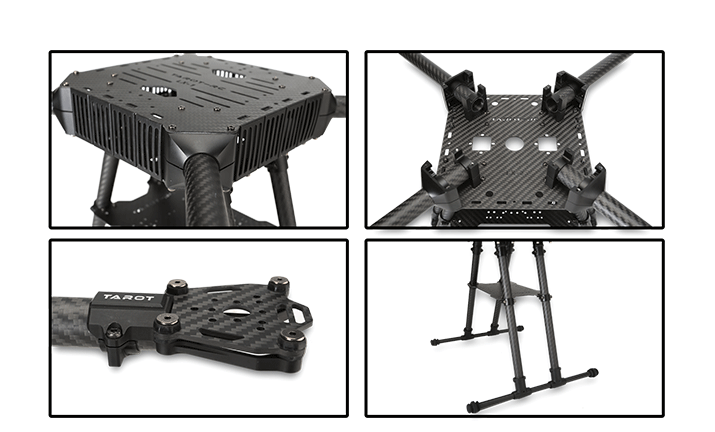

1. Non-folding integrated frame structure design, the whole machine is firm and sturdy;
2. The frame body, arm and landing gear full carbon fiber material;
3. 6061T6 aluminum alloy CNC-processed metal parts are used in the arm joints and landing gear joints;
4. Large space in the center panel allows easy installation of various electronic devices;
5. Shock-absorbing motor mount, reduce the impact of motor vibration to the center flight control;
6.T-type double landing gear design, and fully embraced battery compartment, the overall rigidity of strong and stable;
7. The weight of the frame is only 880g.

Product size

Packing list

TL680A rack x 1
