Product description

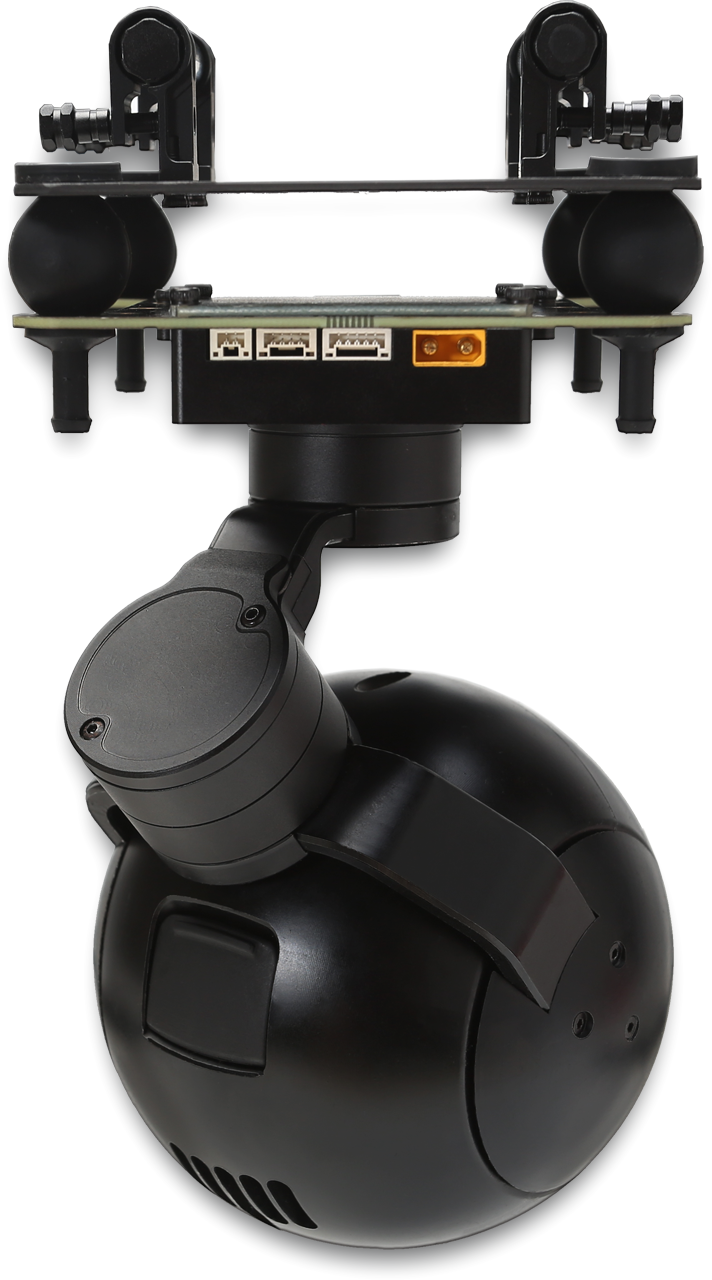

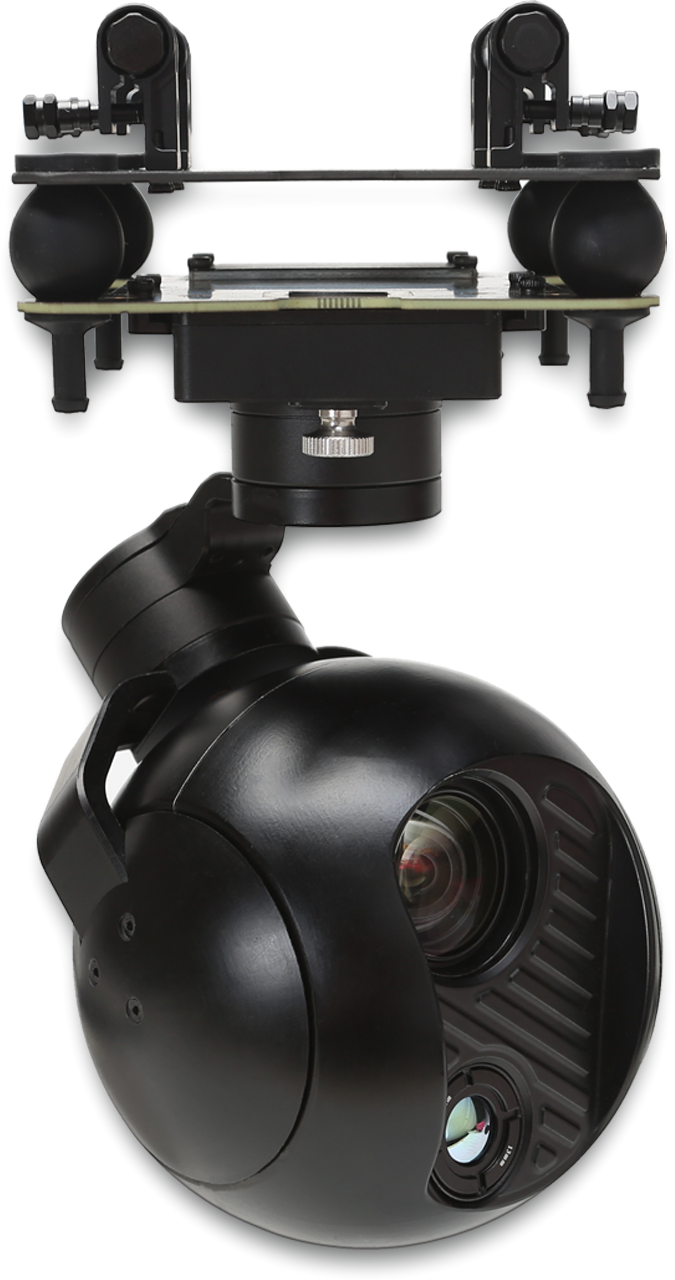

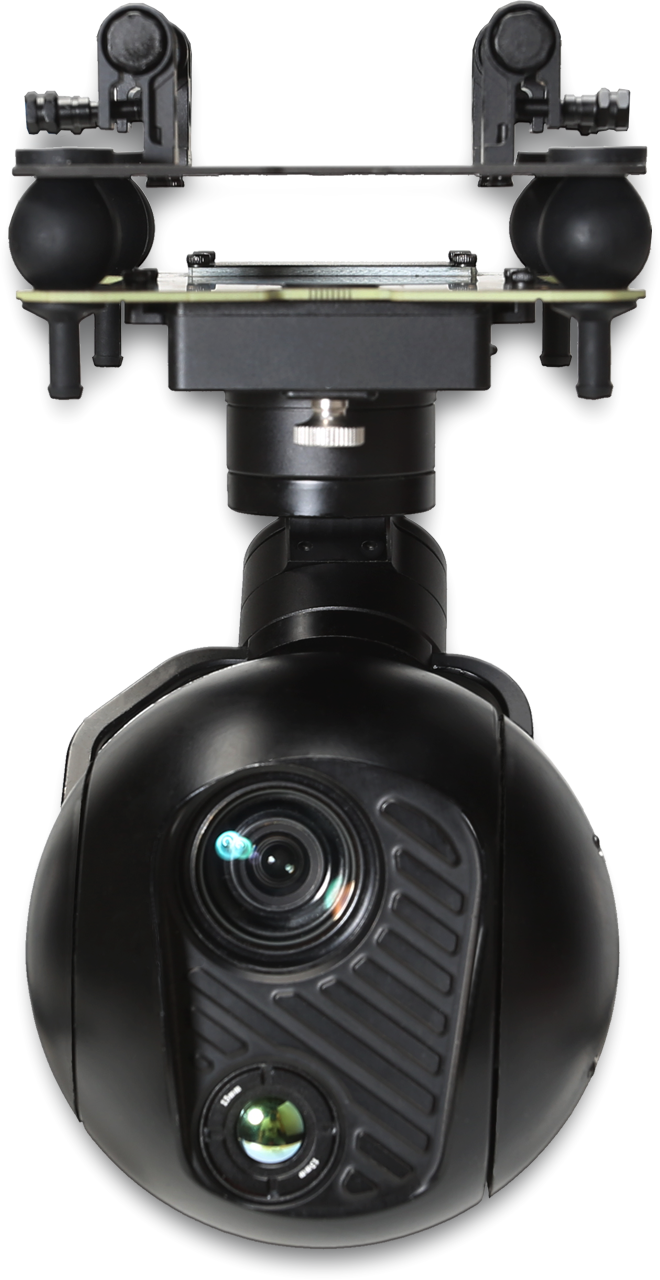

·The Tarot T10X-3AT is a 3-axis zoom camera gimbal developed specifically for industry applications;
·Visible light support 10x optical zoom, using 1/2.8 CMOS sensor, effective pixels 2 million;
·Equipped with 13mm 640*512 resolution thermal imaging, support for human-vehicle recognition and target tracking function;
·The pod adopts professional three-axis mechanical stabilization technology, which can be applied in many industries such as fire-fighting, forest public security, public security monitoring, search and rescue, and environmental protection law enforcement.

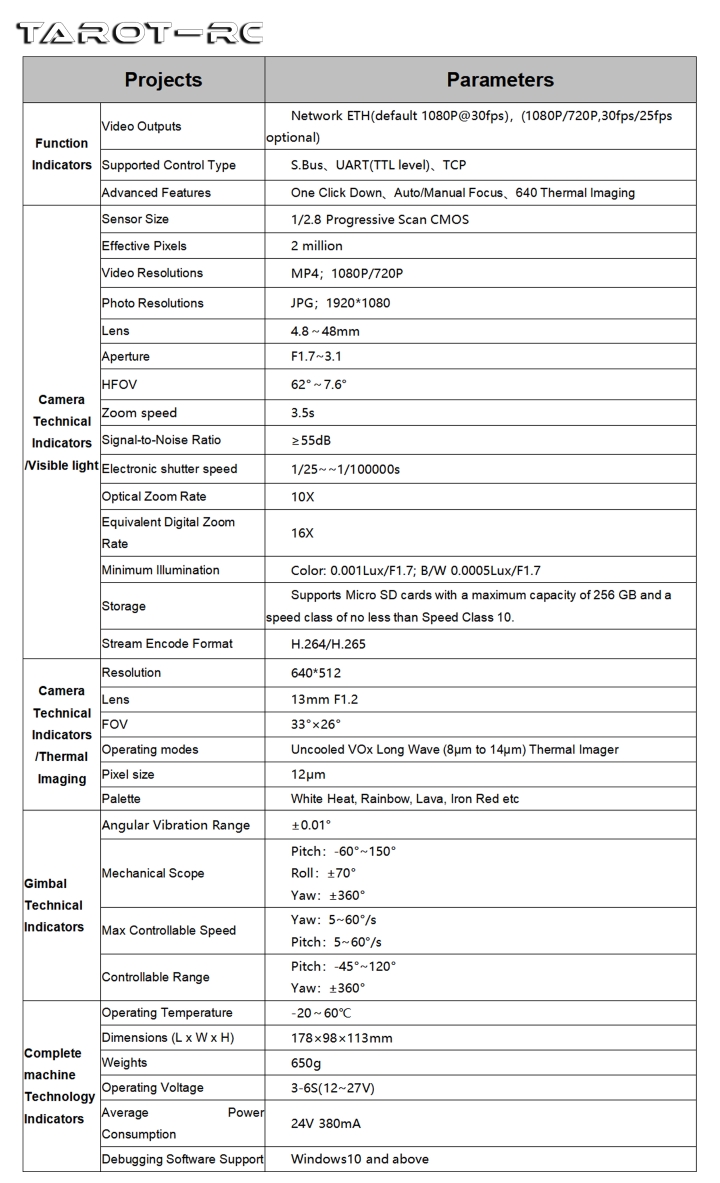

Product characteristics

·Weight 660g；
·Visible light: the camera supports 10X optical zoom, effective pixels 2 million；
·Visible light: FOV range 62° to 7.6°, Focal length 4.8～48mm；
·Visible light: video resolution 1080P@30fps; photo resolution 1920*1080；
·Visible light: color minimum illumination 0.001 Lux/f1.7；
·Thermal imaging: 13mm; 640*512；

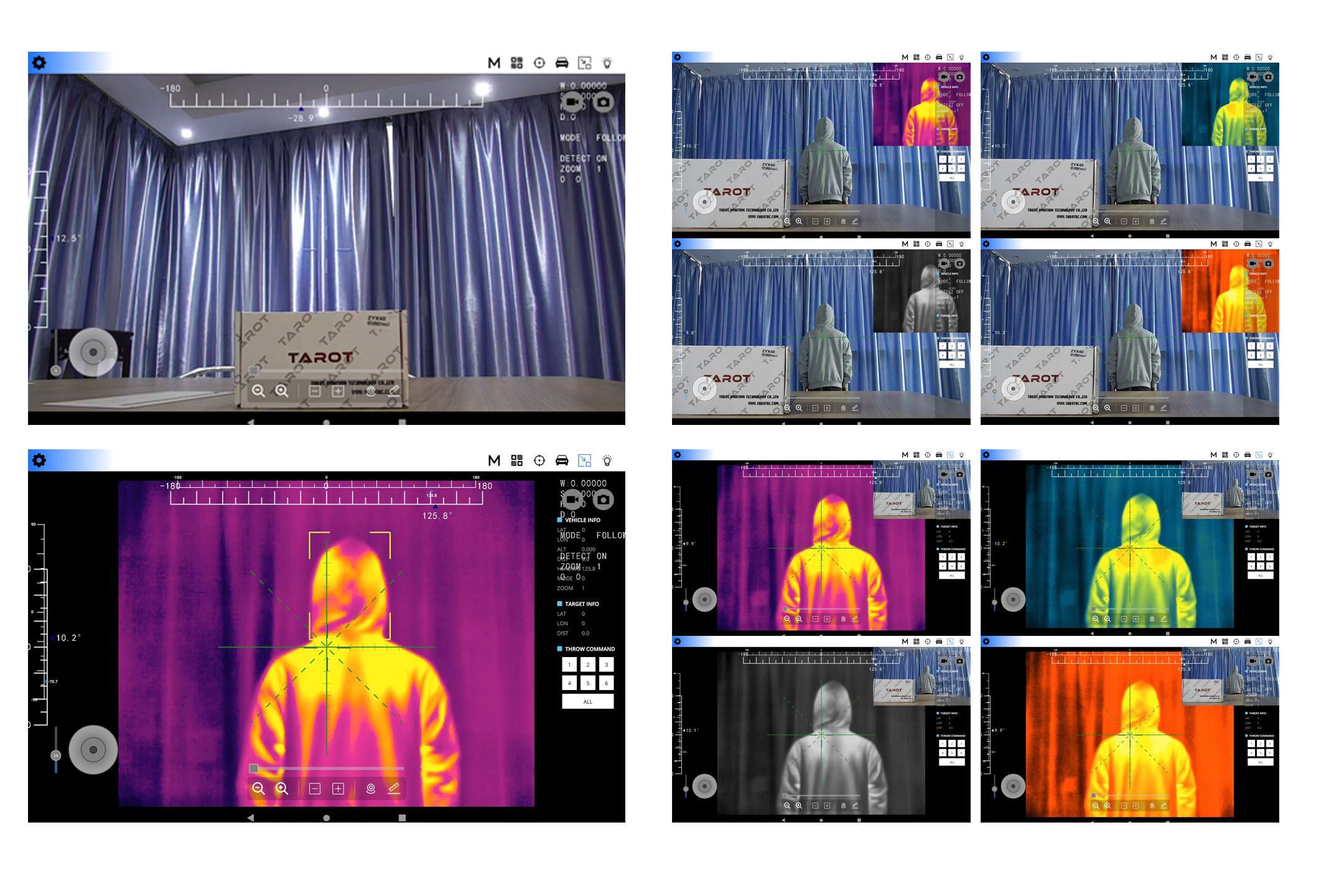

·Supports PIP display for visible light and thermal imaging；
·Supports people-vehicle identification and target tracking；
·Highly optimized vector control algorithms for servo motors；
·Mechanical 3-axis image stabilization, ±0.01° image stabilization accuracy；
·Aluminum alloy structure design, lightweight and sturdy, good heat dissipation performance；
·Point axis supports ±360° infinite rotation；
·Supports one click to perform a one-click 90-degree downward overlook operation；
·Support S.BUS, serial port UART protocol, network port TCP protocol control；
·Supports automatic/manual screen focus；
·Customized special ground station PC/Android TCA software can show control operation；
·Compatible with mainstream ground station software (such as Skydroid FPV software, SiYi FPV software, QGC, AheadX Ground Station, JIYI Ground Station, RoFlying Ground Station, etc.), and also supports RTSP video streaming playback software (such as VLC, etc.).；

·Compatible with MAVlink2 communication protocol to realize part of the gimbal's function control and obtain the display of the gimbal's attitude angle.

Product size
