Flying over/Tarot multi rotor/quadcopter/all aluminum body/M860A with dedicated battery

category：3kg load rack
Selling price：11300 RMB
Upload time：2024-10-23 15:19:31

Number of views168

Aircraft parameters

Parameter
Parameter values
Parameter
Parameter values
Empty aircraft weight
3.3KG
Battery weight
6.3kg
Max. wind resistance
Force 6 wind
Flight distance
4000m
Flight altitude
3000m
Flight mode
Self-stabilizing altitude setting stay-behind one-key return etc.
Test environments
Sunny.35°C. Wind force 2
Unloaded flight
13A≈65min
Loaded flight
(1kg/16.5A)≈50min (2kg/19.5A)≈40min (3kg/23.5A)≈35min
Wheelbase
860mm
Deployed wing length
1391mm
Folding size
386*362mm
Center compartment size
250*130*40mm
Frame height
398mm
Battery Size
152*125*90mm

Product description

·Tarot's new Quadcopter is a multi-axis kit designed for professional aerial photography users;
·Kit includes frame,motor,ESC,props,quick release battery（Overseas version only has a battery compartment because the battery can't be shipped）;
·All-aluminum alloy one-piece center compartment;

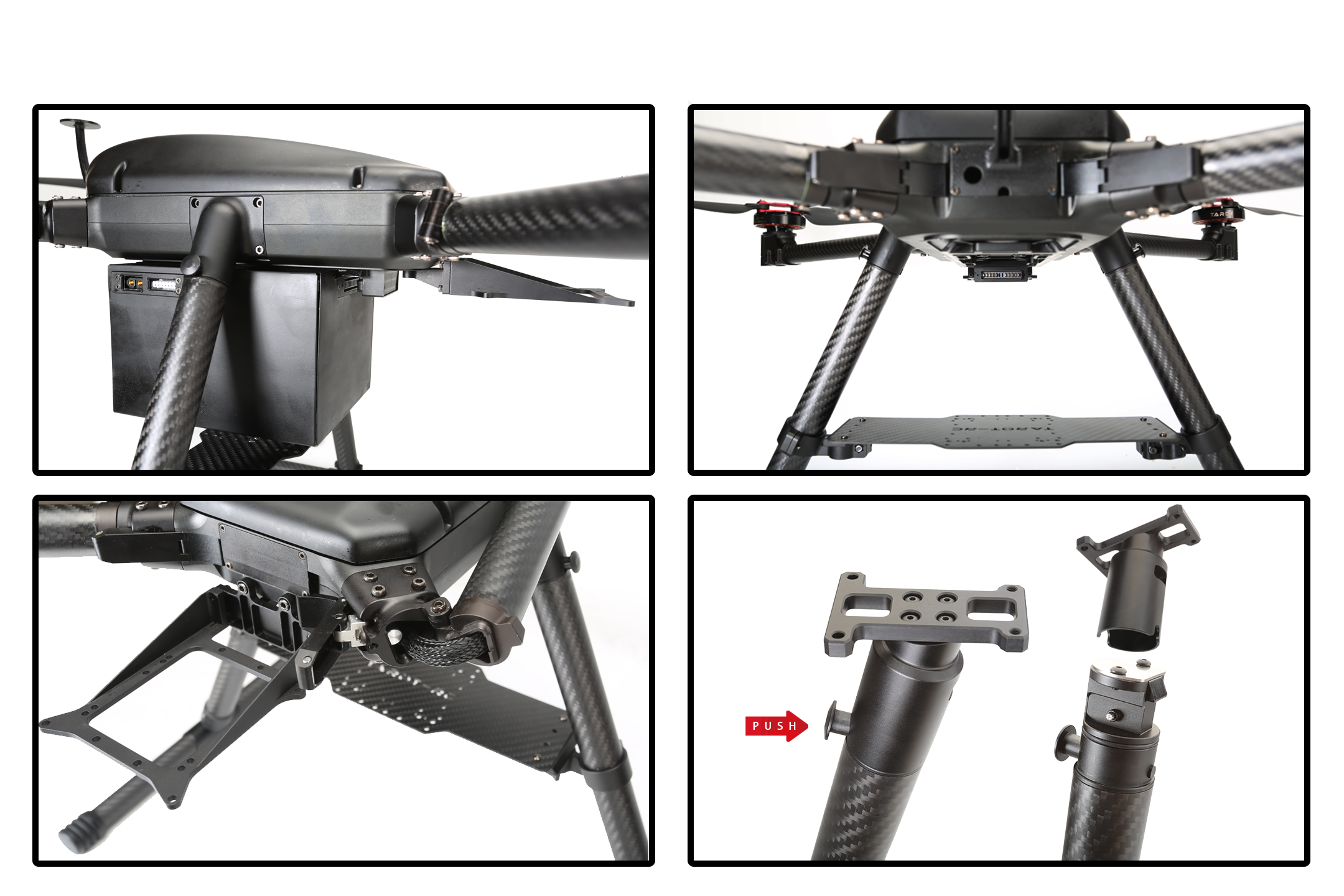

·Novel quick-detachable T-shaped landing gear, as well as the arm folded back and forth design;
·Overall lightweight, easy to carry and other features;
·Empty takeoff weight about 6.3KG, maximum extra load 3KG;
·Easy to carry DSLR and other aerial photography equipment, with 65 minutes of unloaded long endurance stay time;
·Configuration can be upgraded to increase endurance.

Product characteristics

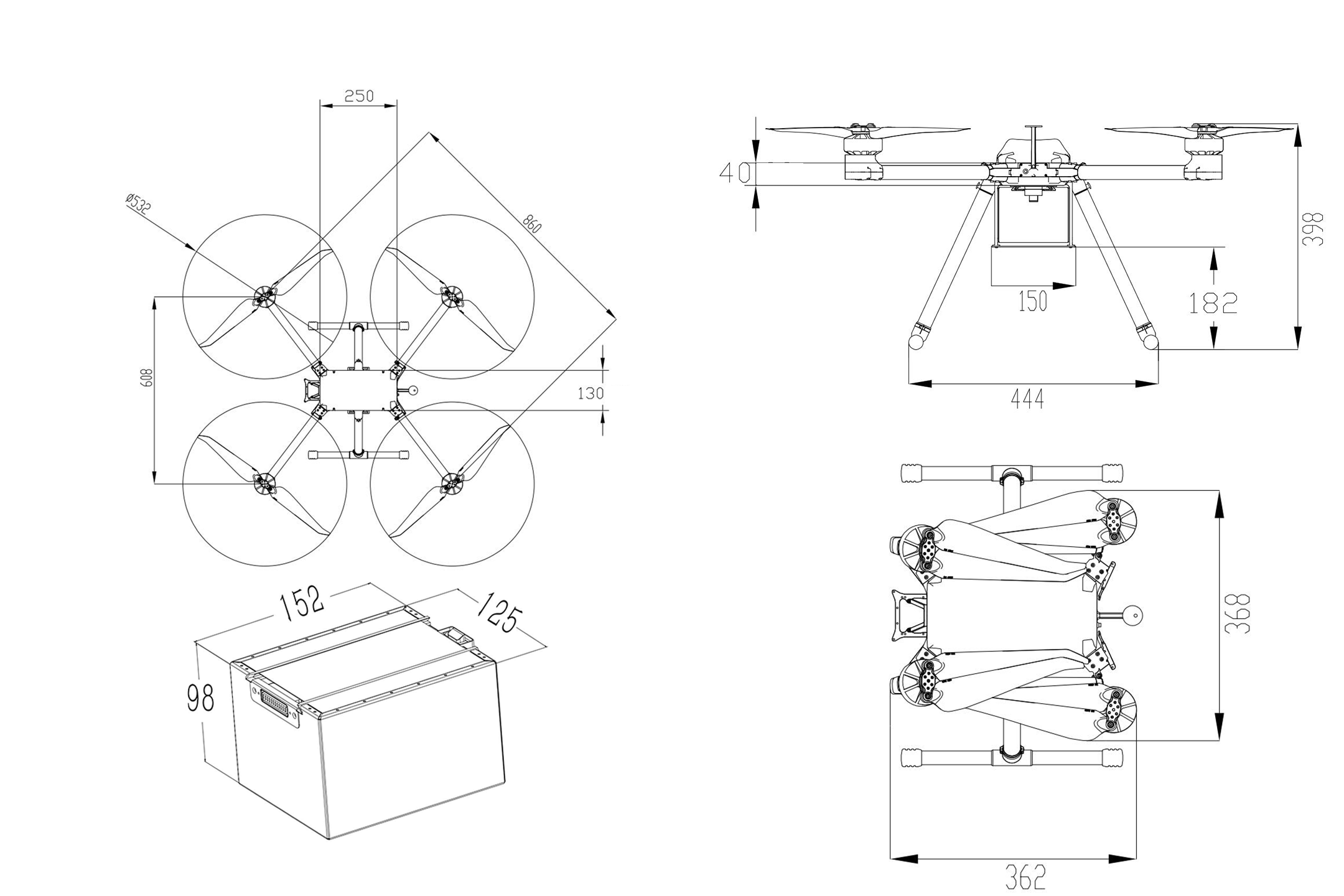

Product size

Packing list

M860 Frame ×1
Tarot 6009/130KV Motor ×4
FLYCOLOR 12S/60A ESC ×4
Tarot 2110 Folding Propeller ×4
Quick Release Battery Set ×1
Portable aluminum box(49*37*46CM) ×1
