Product description

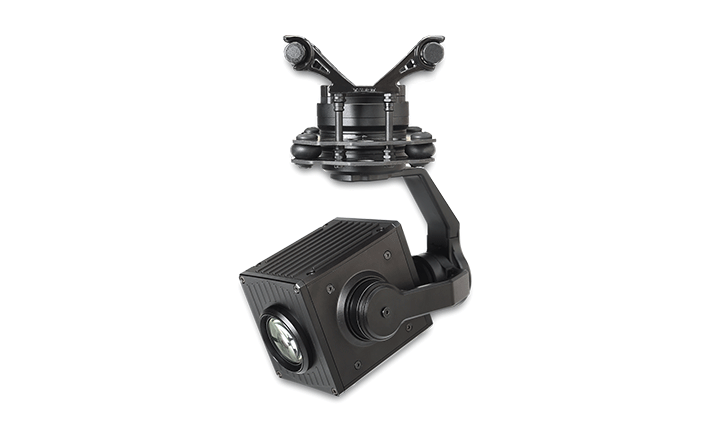

Tarot T10X Plus is a three-axis zoom camera gimbal developed specifically for industry applications, supporting 10x optical zoom, using a 1/2.8 CMOS sensor, with an effective pixel count of 8.29 million, capable of presenting scenery from hundreds of meters away clearly in front of the eyes. The pod adopts professional three-axis mechanical stabilization technology. It can be applied to multiple industries such as fire protection, forest public security, public security monitoring, search and rescue, environmental law enforcement, etc.

Product characteristics

·Weight 435g;

·The optical zoom camera supports 10x optical zoom, with an effective pixel count of 8.29 million;

·The field of view angle range is 60.2 °~6.6 °, and the optical zoom range is f: 4.8~48mm;

·Video resolution 4K@30fps ; Photo resolution 3840 * 2160;

·Minimum color illumination of 0.01Lux/f1.5; The minimum illuminance for black and white is 0.001Lux/f1.5;

·Highly optimized servo motor vector control algorithm;

·Mechanical three-axis image stabilization with a stabilization accuracy of ± 0.01 °;

·Aluminum alloy structure design, lightweight and sturdy, with good heat dissipation performance;

·One click downward 90 degree view operation;

·Support SBUS and serial protocol;

·Support automatic/manual image focusing.

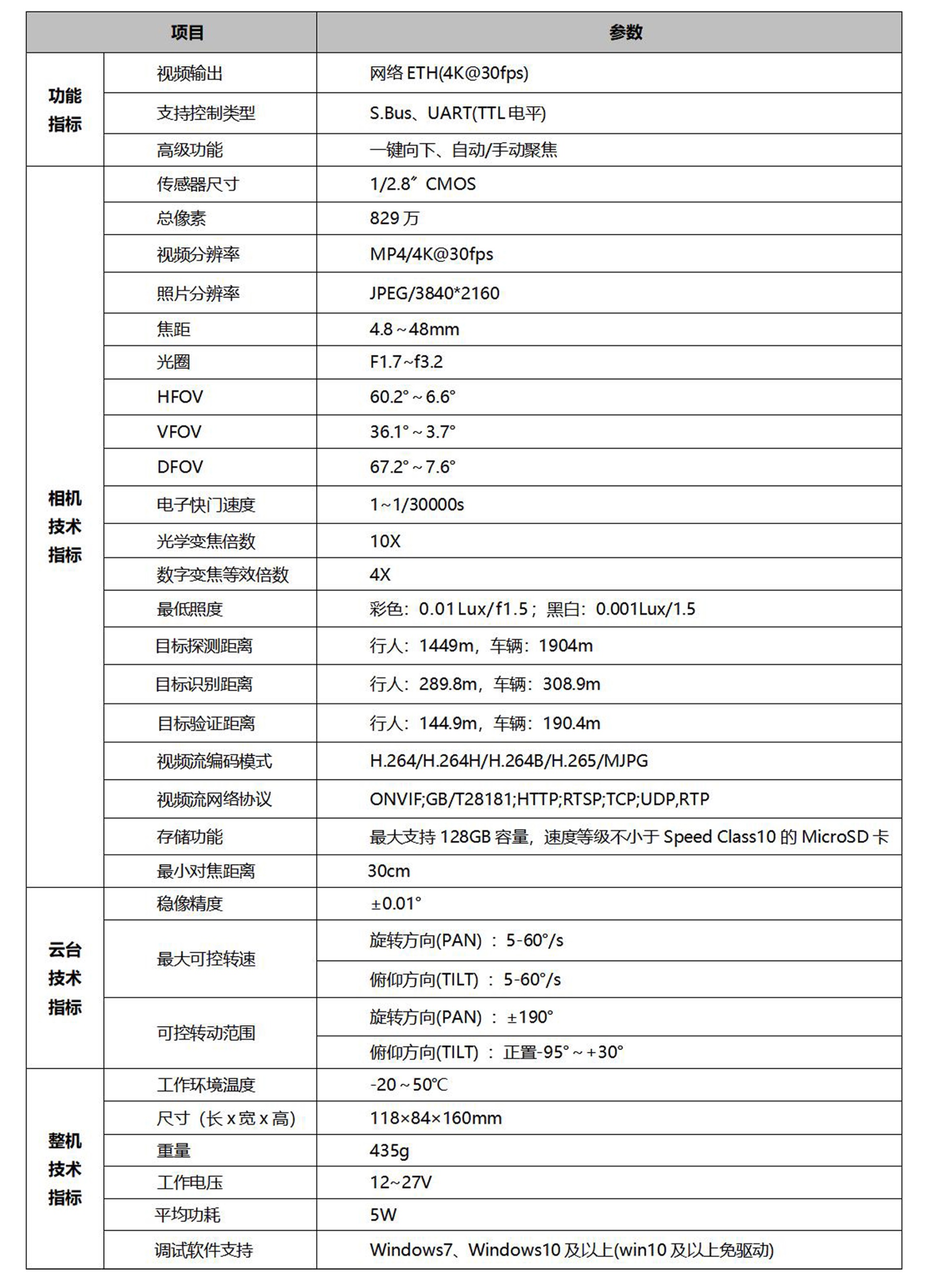

Product size
