Tarot Multi-rotor Frame/Quadrotor/All Aluminum Body/With empty battery compartment M860B-Drone rack-Wenzhou Feiyue Technology Co., Ltd.

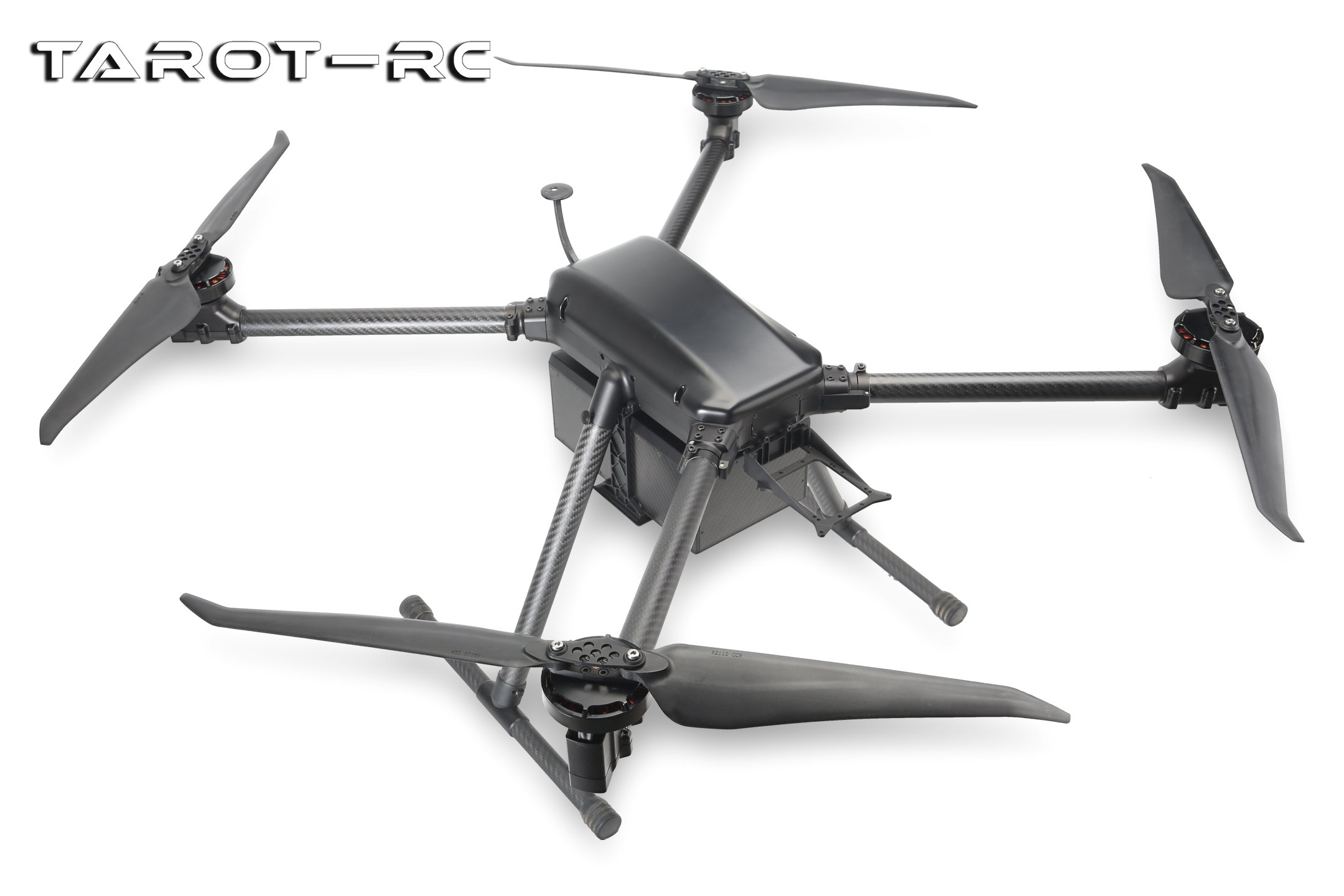

Tarot Multi-rotor Frame/Quadrotor/All Aluminum Body/With empty battery compartment M860B

category：
Selling price：9800 RMB
Upload time：2024-07-01 16:13:07

Number of views98

Frame Parameters

Empty aircraft weight
3KG
Empty aircraft weight
3KG
Battery weight
3.26KG
Take-off weight
6.26KG
Max. wind resistance
Force 6 wind
Flight distance
4000m
Flight altitude
3000m
Flight mode
Sunny.35°C. Wind force 2
Drone endurance length is related to the test environment and battery capacity
Unloaded flight
13A≈65min
Loaded flight
(1kg/16.5A)≈50min (2kg/19.5A)≈40min (3kg/23.5A)≈35min
Wheelbase
860mm
Deployed wing length
1391mm
Folding size
368*362mm
Center compartment size
250*130*40mm
Frame height
398mm
Battery compartment size
216*126*94mm

Product description

·Tarot's new Quadcopter is a multi-axis kit designed for professional aerial photography users;

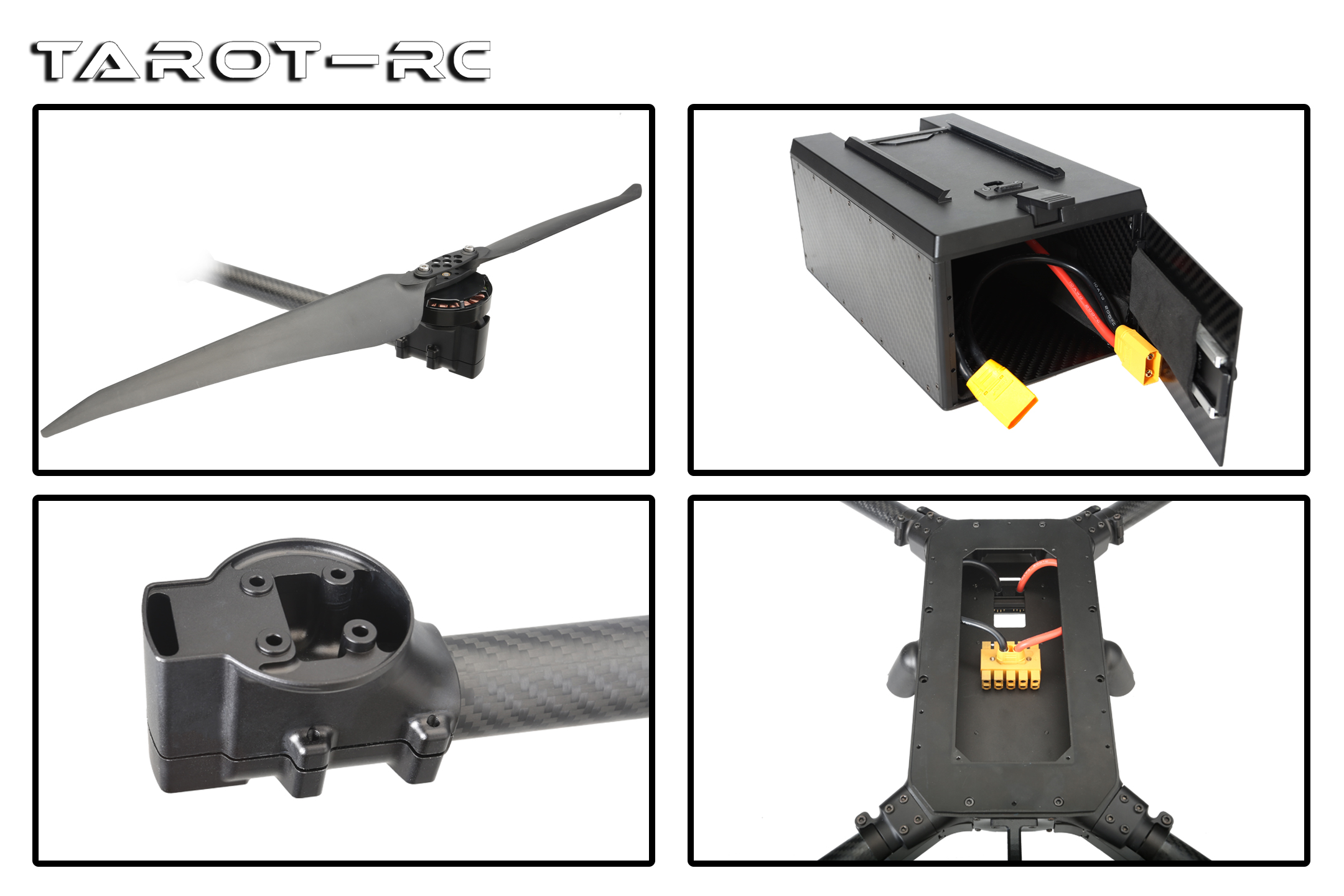

·Kit includes frame,motor,ESC,props,quick release battery（Overseas version only has a battery compartment because the battery can't be shipped）;
·All-aluminum alloy one-piece center compartment;

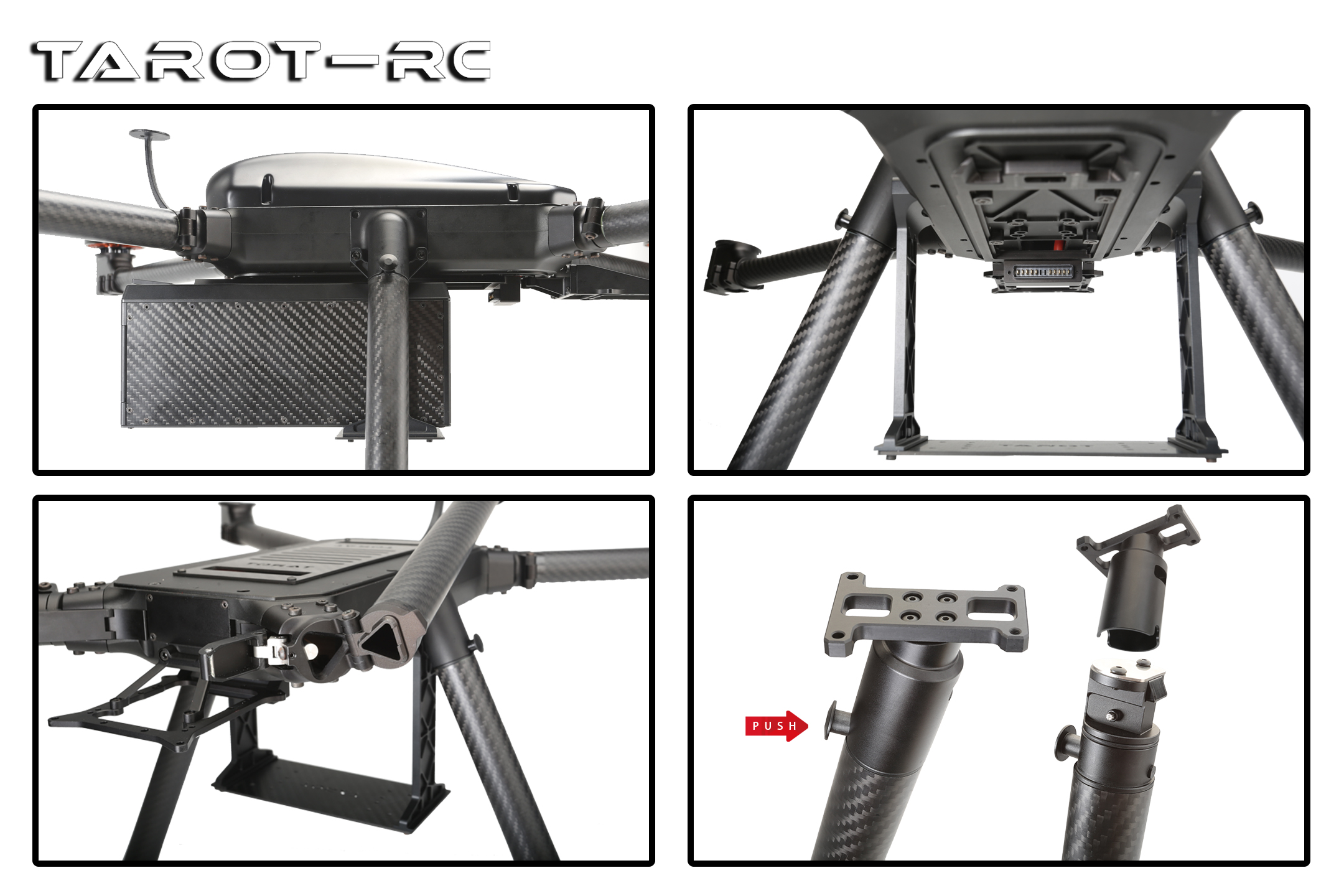

·Novel quick-detachable T-shaped landing gear, as well as the arm folded back and forth design;
·Overall lightweight, easy to carry and other features;
·Empty takeoff weight about 6.3KG, maximum extra load 3KG;
·Easy to carry DSLR and other aerial photography equipment, with 65 minutes of unloaded long endurance stay time;
·Configuration can be upgraded to increase endurance.

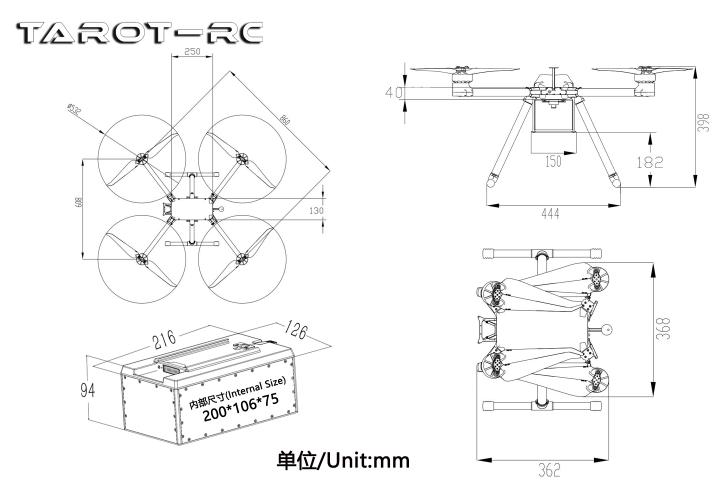

Product size

Packing list

M860 Frame ×1
Tarot 6009/130KV Motor ×4
FLYCOLOR 12S/60A ESC ×4
Tarot 2110 Folding Propeller ×4
Quick Release Battery Compartment ×1

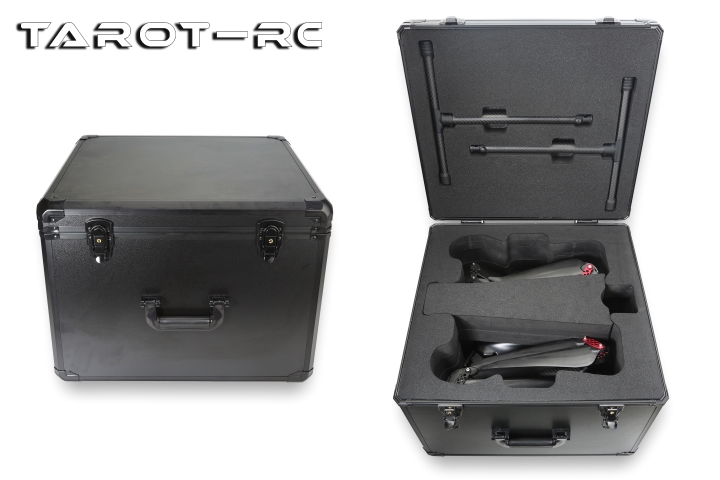

Portable aluminum box(49*37*46CM) ×1
